Reinforced Steel Cable Guide Rollers , Finished Tungsten Carbide Rolls

Product Categories
ZHUZHOU SEEGO CARBIDE TOOLS CO., LTD.
Contact Now

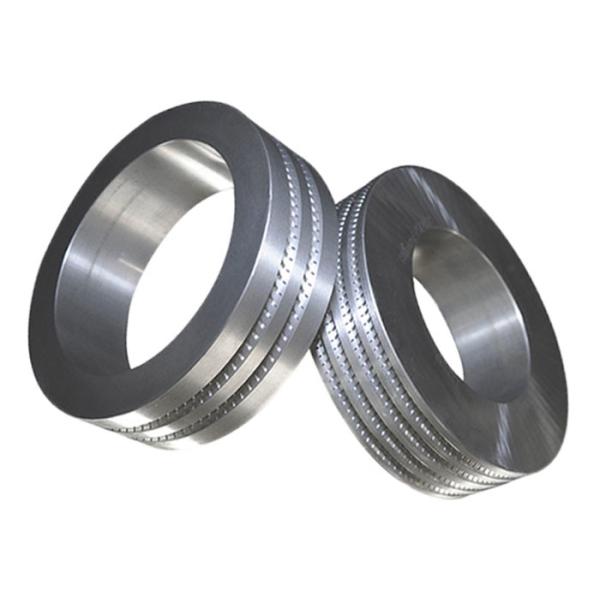

Reinforced Steel Cable Guide Rollers , Finished Tungsten Carbide Rolls

  • 1
  • 2

Brand Name : Seego Carbide

Model Number : As customized

Certification : CE/ISO:9001

Place of Origin : zhuzhou, China

MOQ : 2 pcs

Price : Negotiable

Payment Terms : T/T, L/C, D/P, Western Union

Supply Ability : 100 tons/month

Delivery Time : 15-20 days

Packaging Details : Fiber board case

Size : Customized Size

Grade : YG8 YG6 YG15 YG20

Material : 100% Virgin Tungsten Carbide

Color : Iron Gray

Surface : blank or ground

Trial order : Acceptable

Usage : used in steel Industry for guiding steel/iron wire

Sample : available

Contact Now

Finished Tungsten Carbide Roll Rings Used in Reinfored Steel Wire

Product Description& application:

We can produce sintered or finished tungsten carbide roll rings, and the finished roller could be applied

in reinfored steel wire.

The sample order is acceptable.

Blank size with the tolerance(mm):
Dimension and Tolerance mm
D Tolerance d Tolerance H Tolerance
<=125 +0.5~+1.8 <=90 -1.5~-0.5 <=20 +0.5~+1.5
>125~180 +0.5~+2.5 >90~95 -1.5~-0.5 >20 +0.5~+2.0
>180~250 +0.5~+2.8 >95 -2.0~-0.5 --- 　
>250 +0.5~+3.5 ---- --- --- 　

Finished size with the tolerance(mm):
Dimension and Tolerance mm
OD Tolerance ID Tolerance H Tolerance
<=125 +/- 0.015 <=90 0.0/+0.02 <=20 +/- 0.01
>125~180 >90~95 >20
>180~250 >95 ---
>250 ----

---

Finished size (mm):
Radial run-out of groove Radial run-out of periphery End face runout Surface parallelism Inner hole
cylindricity
0.013 0.013 0.01 0.01 0.01

Avaliable Dimension:
Type 　 Dimension 　
D(mm) d(mm) H(mm)
HR-156×94×70 156 92 62
HR-156×87×62 156 87 61
HR-158.8×87.32×62 158.8 87.32 62
HR-170.66×95×70 170.66 95 70
HR-170.66×95×57.35 170.66 95 57.35
HR-180×87.32×72 180 87.32 72
HR-210.5×120.65×72 228.3 120.65 72
HR-212 ×120 ×60 212 120 60
HR-228.3×126×72 228.3 126 72
HR-228×135×72 228 135 72
HR-228×130×72 228 130 72
HR-228.34×130×44.476 228.34 130 44.476
HR-285×160×95 285 160 95
HR-285×160×70 285 160 70
HR-300×160×70 300 160 70

Type 　 Dimension 　
D(mm) d(mm) H(mm)
CR-270×190×30 270 90 30
CR-250×210×30 250 210 30
CR-200×90×20 200 90 20
CR-180×95×18 180 95 18
CR-180×125×25 180 125 25
CR-167×55×25 167 55 25
CR-160×90×15 160 90 15
CR-150×90×15 150 90 15
CR-150×90×20 150 90 20
CR-140×90×15 140 90 15
CR-140×90×15 140 90 15
CR-125×82×15 125 82 15
CR-125×82×20 125 82 20

Wire RangeΦ
(mm)		 OutsideΦ
(mm)		 InsideΦ
(mm)		 Thickness
(mm)
4-8.5 123 82 15
9-12 123 82 20
4-8.5 125 90 15
9-12 125 90 20
4-8.5 140 90 15
9-12 140 90 20
4-8.5 150 90 15
9-12 150 90 20
4-8.5 160 90 15
9-12 160 90 20
4-8.5 220 130 15
9-12 220 130 20

We produce and supply various sizes of carbide roller blanks and finish grinding rollers.

Lead Time:

Quantity(Pieces) 1-10 11 - 50 51 - 100 >100
Est. Time(days) 30 40 60 To be negotiated
